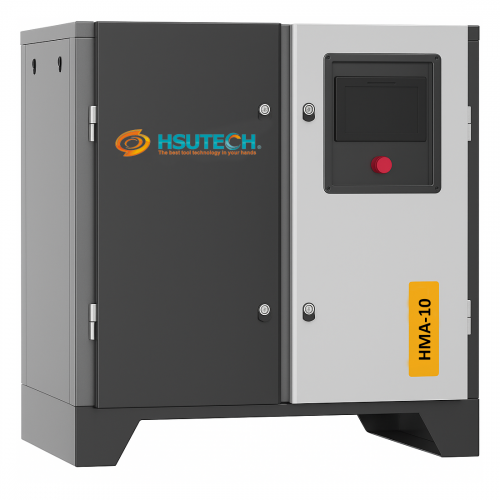

HMA-10
SMART COMPRESSOR - Stationary series
- Color touch screen
- Oil cooled motor
- Intelligent VF control
| Max. Working Pressure | 8 bar (116 psi) |
| Capacity FAD | 1.2 m3/min, 20 l/s, 72 m3/h, 43 cfm |
| Motor Power | 7.5 KW (10 HP) |
| Dimension (mm) | L 830 x W 650 x H 930 |
| Net Weight (KG) | 195 |
| Gross Weight (KG) | 205 |
| Max. Working Pressure | 10 bar (145 psi) |
| Capacity FAD | 1.05 m3/min, 17.5 l/s, 63 m3/h, 38 cfm |
| Motor Power | 7.5 KW (10 HP) |
| Dimension (mm) | L 830 x W 650 x H 930 |
| Net Weight (KG) | 195 |
| Gross Weight (KG) | 205 |
