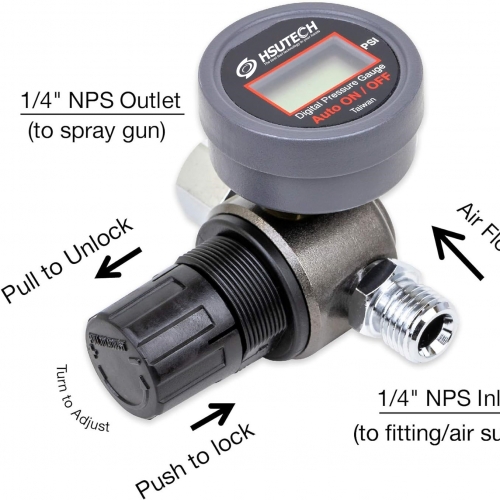

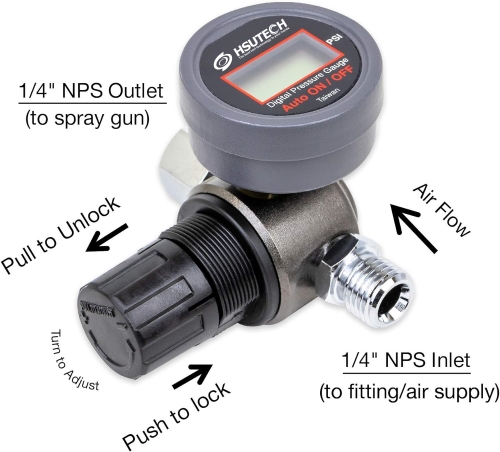

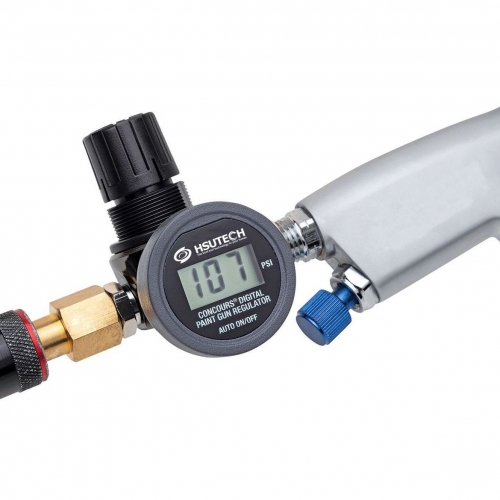

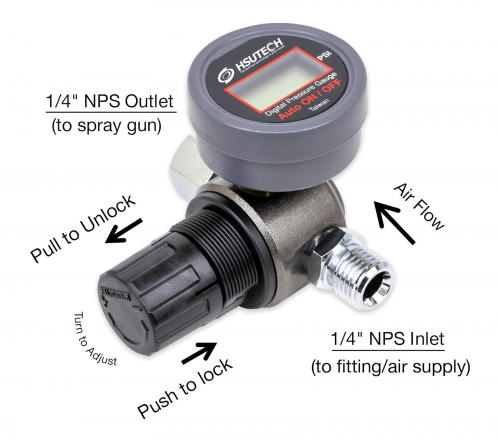

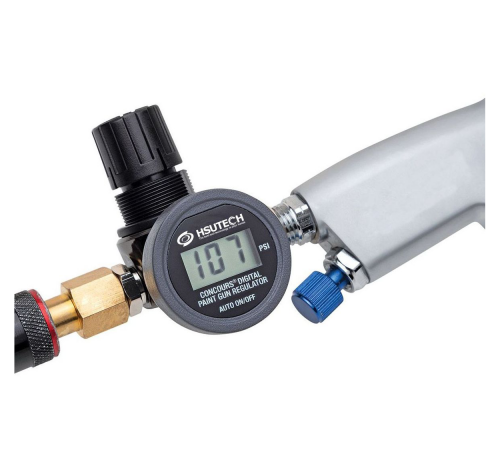

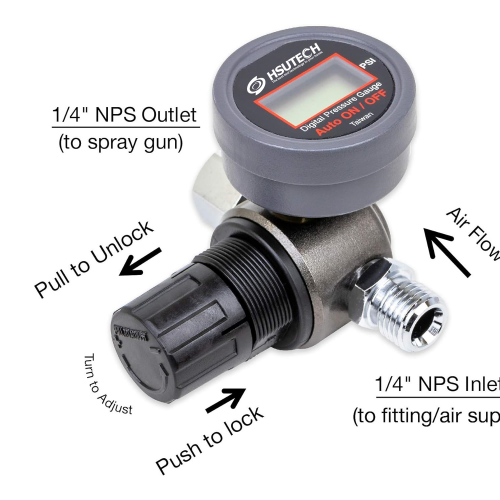

AR1-G2
DIGITAL PRESSURE GAUGE
- Easy to read Digital Gauge.
- Air Adjustment gauge range 3-160 PSI.
- Auto ON/OFF. If the gauge detects a change of pressure above 3 psi, the gauge will automatically turn on. The pressure gauge will remain on for the full duration while using the spray gun and will turn off once the air hose is disconnected.
- Diaphragm control allows for precise air control for best paint results.
- Locking Air Adjustment Knob.
| Pressure Gauge Range | 3 - 200 psi |
| Pressure Gauge Label | Solvent resistant PET face label |
| Pressure housing | 1.4” Dupon Acetal plastic |
| Air Inlet/ outlet | 1/4” NPS |
| Air flow volume |
29 psi (10.70 CFM) 58 psi (18.00 CFM) |
| Governor Housing |
Forged Al6061 aluminum |
| Governor Plastic resin | Dupon Acetal |
| Net Weight | 123 g |
